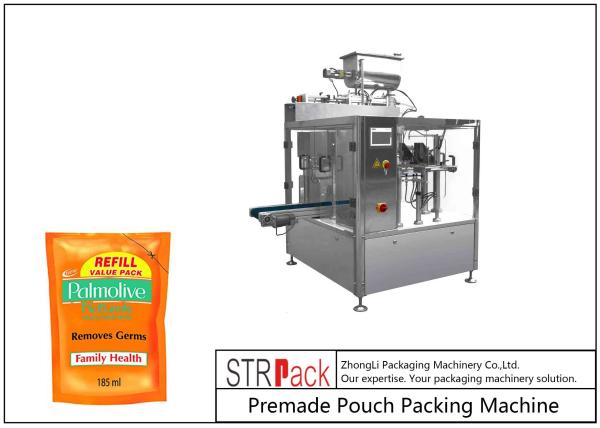

Stand-up Bag Edible Oil Pouch Packing Machine Auto 6 Working Station Up to 50 Bags/Min

Brand Name : STRPACK

Model Number : Edible Oil Bag Packing Machine Automatic Bag-given Packing Machine For Liquid

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 50 SET/MONTH

Packaging Details : Wooden

Pouch Type : Pillow Bag,3 Side Bag, 4 Side Bag, Flat Bag

Working Station : 6 Working-Station

Filling Range : 5-1500g

Pouch Width : 80-200mm(3.15”-7.87”)

Pouch Length : 100-300mm(3.94”-11.8”)

Capacity : Up to 50 Bags/Min(Depends on products’ natures and filling weight)

Contact Now

Stand-up Bag Edible Oil Pouch Packing Machine Auto 6 Working Station Up to 50 Bags/Min

Technical Characteristic

1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

5. The part where touch to the materials is made of stainlesss steel and according with the request of GMP.

Application:

Automatic Liquid and paste Packaging Machine suitable for liquid material,such as syrup,ketchup,bechamel.capsicum paste,scour ,detergent liquid ,drink liquid and different kinds of liquid &thick liquid automatic packing .

Specification

Pouch Type Pillow Bag,3 Side Bag, 4 Side Bag, Flat Bag
Working Station 6 Working-Station
Filling Range 5-1500g
Pouch Width 80-200mm(3.15”-7.87”)
Pouch Length 100-300mm(3.94”-11.8”)
Capacity Up to 50 Bags/Min(Depends on products’ natures and filling weight)
Dosing System Multi-head Scale, Auger Filler, Piston Filler, Volumetric Cup
Power Supply AC380V/50Hz, 3phase or Per customer specification
Power Consumption 1.5KW
Compressed Air 0.4 M3/min Supply By User
Machine Dimension 1650x1380x1500mm (5.4’ x 4.5’ x 4.9’)
Machine Weight 1060kg

Stand-up Bag Edible Oil Pouch Packing Machine Auto 6 Working Station Up to 50 Bags/Min

Stand-up Bag Edible Oil Pouch Packing Machine Auto 6 Working Station Up to 50 Bags/Min
