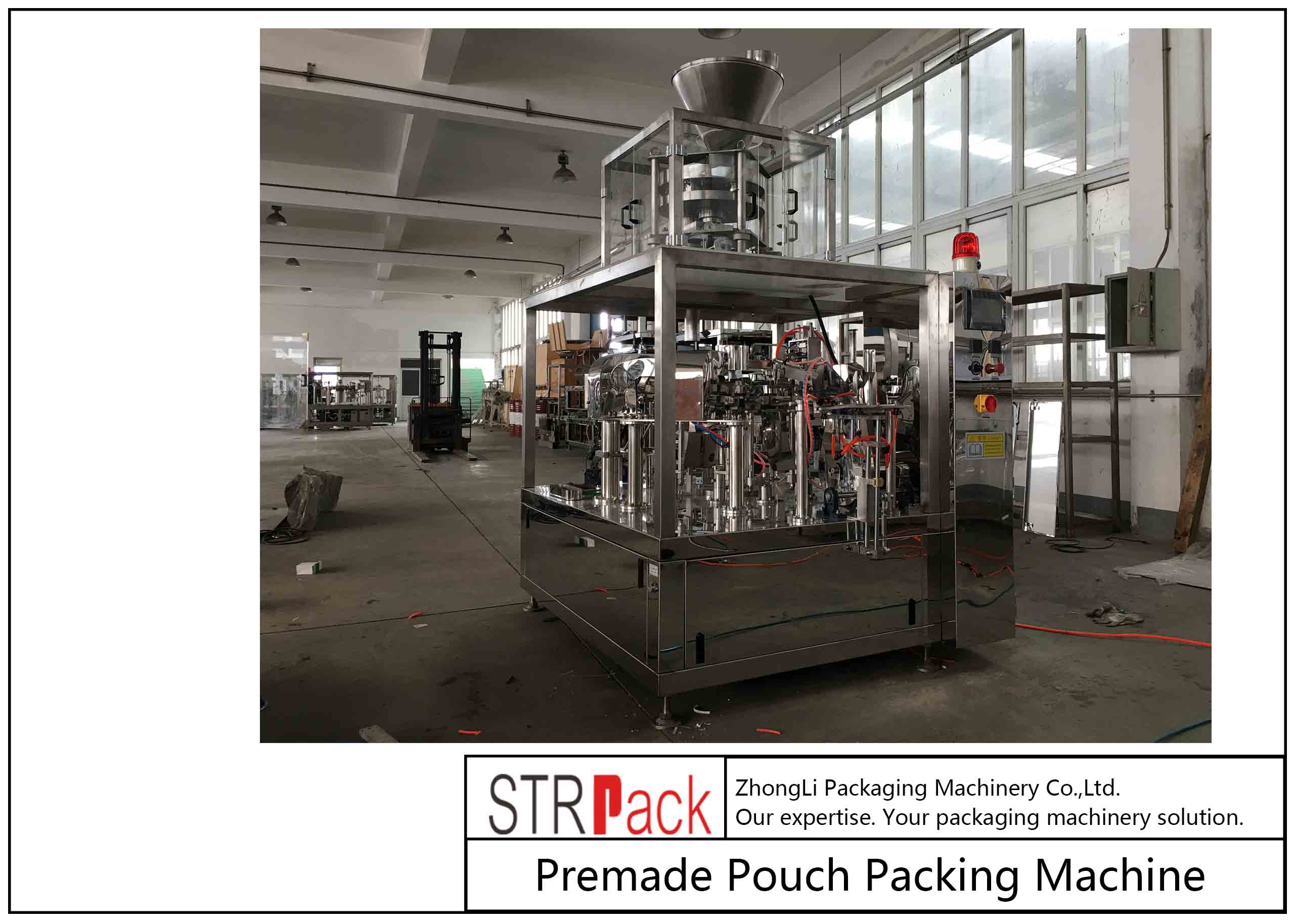

Automatic Tomato Paste Packing Machine Doypack Pouch Rotary Packing Machine With PLC Control for Liquid Food Packaging

Brand Name : STRPACK

Model Number : Tomato Paste Packing Machine Doypack Pouch Rotary Packing Machine

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 50 SET/MONTH

Packaging Details : Wooden

Pouch Type : Pillow Bag, 3 Side Bag, 4 Side Bag, Flat Bag

Working Station : 6 Working-Station

Filling Range : 5-1500g

Pouch Width : 80-200mm(3.15”-7.87”)

Pouch Length : 100-300mm(3.94”-11.8”)

Power Consumption : 1.5KW

Contact Now

Automatic Tomato Paste Packing Machine Doypack Pouch Rotary Packing Machine With PLC Control for Liquid Food Packaging

Automatic Tomato Paste Packing Machine Doypack Pouch Rotary Packing Machine With PLC Control for Liquid Food Packaging

Function and characteristics
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3. Automatic checking: No pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5. Horizontal conveyer style to giving bag: It can put on more bags on the bag storage and have a low requirement about the quality of bags.
6. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7. Use the plastic bearing, don't need put on oil, less pollution.
8. Use no oil vacuum pump, avoid polluting the environment in the production.
9. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11. with different feeders changed to pack solid, liquid, thick liquid, powder and so on.
12. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper.


Product Process
1. Giving bag
2. Coding date
3. Open bag
4. Filling &vibrate
5. Sealing
6. Forming & output packages.

Specification

Pouch Type Pillow Bag, 3 Side Bag, 4 Side Bag, Flat Bag
Working Station 6 Working-Station
Filling Range 5-1500g
Pouch Width 80-200mm(3.15”-7.87”)
Pouch Length 100-300mm(3.94”-11.8”)
Capacity Up to 50 Bags/Min(Depends on products’ natures and filling weight)
Dosing System Multi-head Scale, Auger Filler, Piston Filler, Volumetric Cup
Power Supply AC380V/50Hz, 3phase or Per customer specification
Power Consumption 1.5KW
Compressed Air 0.4 M3/min Supply By User
Machine Dimension 1650x1380x1500mm (5.4’ x 4.5’ x 4.9’)
Machine Weight 1060kg

Automatic Tomato Paste Packing Machine Doypack Pouch Rotary Packing Machine With PLC Control for Liquid Food Packaging
