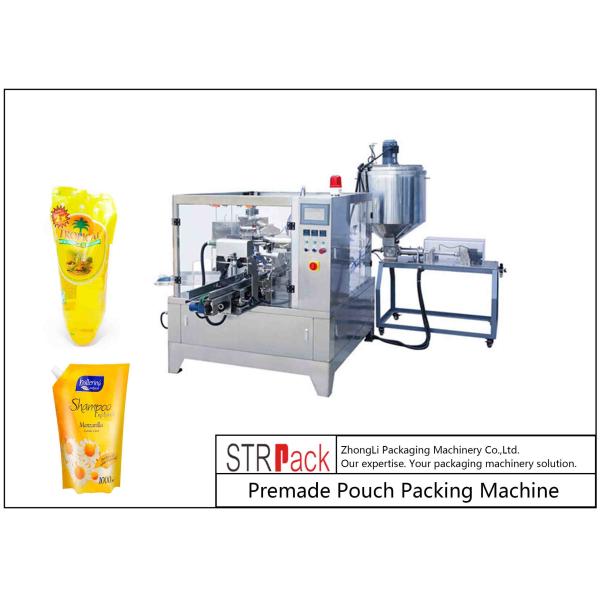

Liquid Premade Pouch Packing Machine Rotary With Paste Filler

Brand Name : STRPACK

Model Number : Liquid Premade Pouch Packing Machine

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 50 SET/MONTH

Packaging Details : Wooden

Bag Type : premade bag

Pouch material : Laminated film\PP\PE etc.

Film Thickness : 0.04-0.12mm

Voltage : AC 220V/ 50HZ 1phase or per customer needs

Model : CF6-200

Measuring range : 5-1500g

Contact Now

Liquid Premade Pouch Packing Machine Rotary With Paste Filler

Summarize:

This automatic packing machine unit is specialized in liquid and thick liquid such as syrup, ketchup, béchamel, capsicum paste, scour. This machine includes the rotary packing machine and liquid & paste filler.

Main technical Parameters

This machine is the typical automatic bag feeding packing machine; it can finish the following work: clasp the bag, print the bag, open the bag, filling, vibrating, sealing, shaping, conveying etc. It is suitable for many kinds of materials and different packaging bag. It is easy to adjust and operate and to change the packing specification. The machine is equipped with automatic checking and safety monitoring function. It can lower the consumption rate of wrapping material and keep the sealing effect and bag shape. The whole machine is made of 316 Stainless Steel which is hygienic and safety.

Function and characteristics:


1. Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6. It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust.
7. Use the plastic bearing, don’t need put on oil, less pollution.
8. Use no oil vacuum pump, avoid polluting the environment in the production.
9. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.

Technical parameters:

Model ZG6-200 ZG6-300 ZG8-200 ZG8-300
Measuring range 5-1500g 100-2500g 5-1500g 100-2500g
Measurement accuracy ±0.5-5g
Bag Type premade bag
Operation Mode Intermittent
Working position six-working position eight-working position
Pouch material Laminated filmPPPE etc.
Speed Up to 15bags/min Up to 40bags/min Up to 45bags/min Up to 40bags/min
Bag Length 100-300mm 200-500mm 100-300mm 200-500mm
Bag Width 100-200mm 180-300mm 100-200mm 180-300mm
Film Thickness 0.04-0.12mm
Voltage AC 220V/ 50HZ 1phase or per customer needs
Power Consumption 5.5KW 6KW 5.5KW 6KW
Compressed Air Requirement 0.6MPa,0.36 M3 / Min
Weight 800KG 850KG 900KG 1100KG
