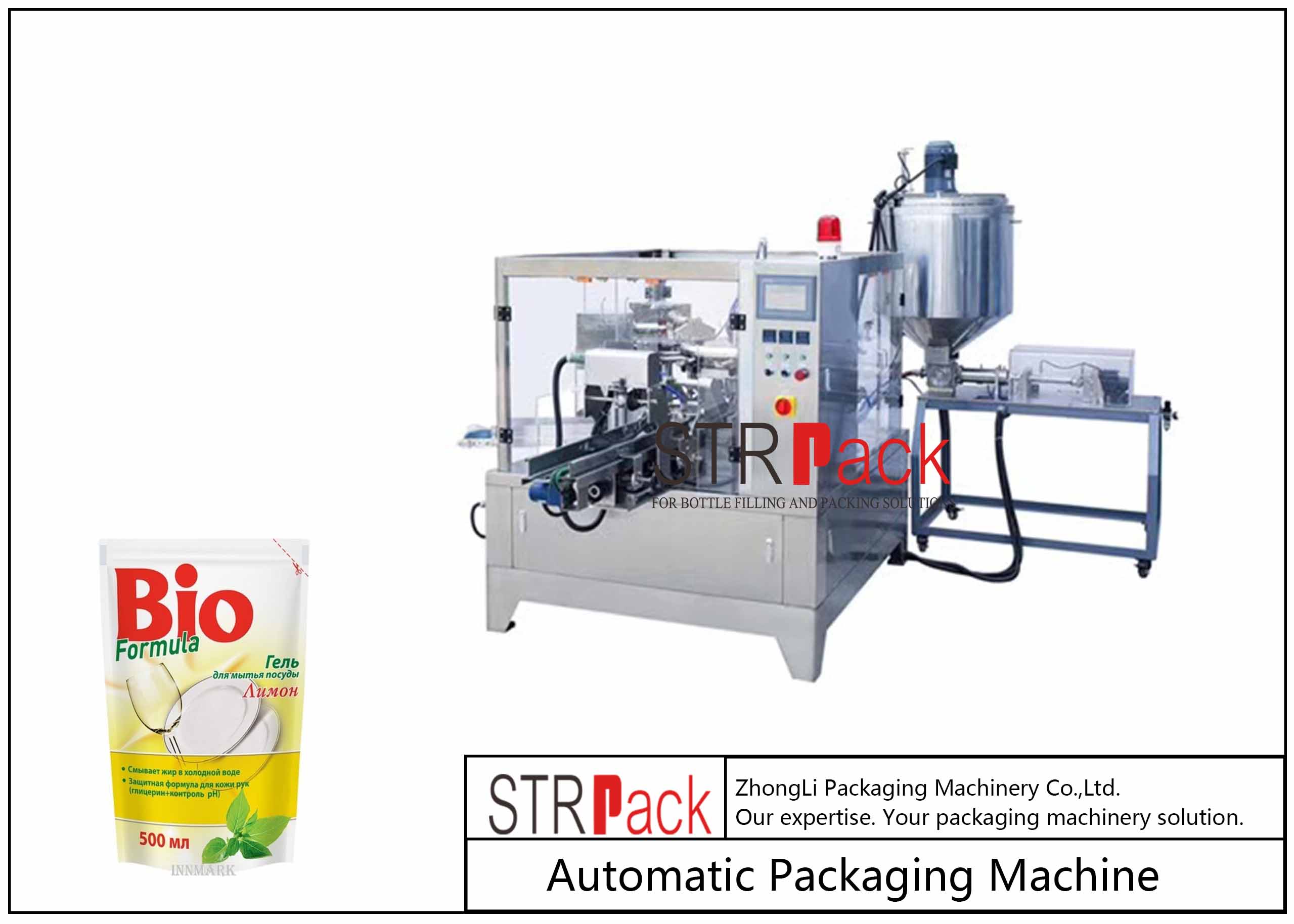

Automatic Doypack Packaging Machine With Liquid Filling Machine For honey oil ketchup paste sauce juice laundry liquid

  • 1
  • 2

Brand Name : STRPACK

Model Number : Shampoo Doypack Packing Machine Automatic Bag-given Packing Machine For Liquid

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 50 SET/MONTH

Packaging Details : Wooden

Filling range : 5~1500g

Equipment model : ZG8-200

Package accuracy : Error≤±1%

Total power : 2.3kw

Equipment material : 304 stainless steel

Pneumatic component : SMC,AirTAC

Contact Now

Automatic Doypack Packaging Machine With Liquid Filling Machine For honey oil ketchup paste sauce juice laundry liquid

Automatic Doypack Packaging Machine With Liquid Filling Machine For honey oil ketchup paste sauce juice laundry liquid

This doypack packing machine is applied for various kinds of liquid such as honey,milk, oil, ketchup, paste, sauce, juice, hand sanitizer,laundry liquid,etc.

Performance and features

1. wide applications: various state and nature of liquid & thick liquid;

2. A wide range of pouches: all kinds of pre-made pouches;

3. Easy to operate: PLC controller, HMI system makes easy operation;

4. Easy to adjust: change different pouches within 10 minutes;

5. High automation: unmanned in weighing and packing process, machine alarm automatically when failure;

6. Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;

7. The product contact parts are adopted SUS304 stainless steel to ensure sanitation and safety, meet the GMP standard;

8. Imported engineer plastic bearings, no need to oil, no contamination;

9. Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;

10. Waterproof design:direct water-washing the machine surface,easy to clean, prolong the useful life

11. Pre-made bag packing: perfect sealing quality, upgrade the finished product.

Technical parameters

Equipment model GVF8-200
Equipment material 304 stainless steel
Pneumatic component SMC,AirTAC
Vacuum component Vacuum generator (SMC)
Drive mode Frequency conversion motor drive
Measuring type Liquid filler, peristaltic pump, draw-off pimp

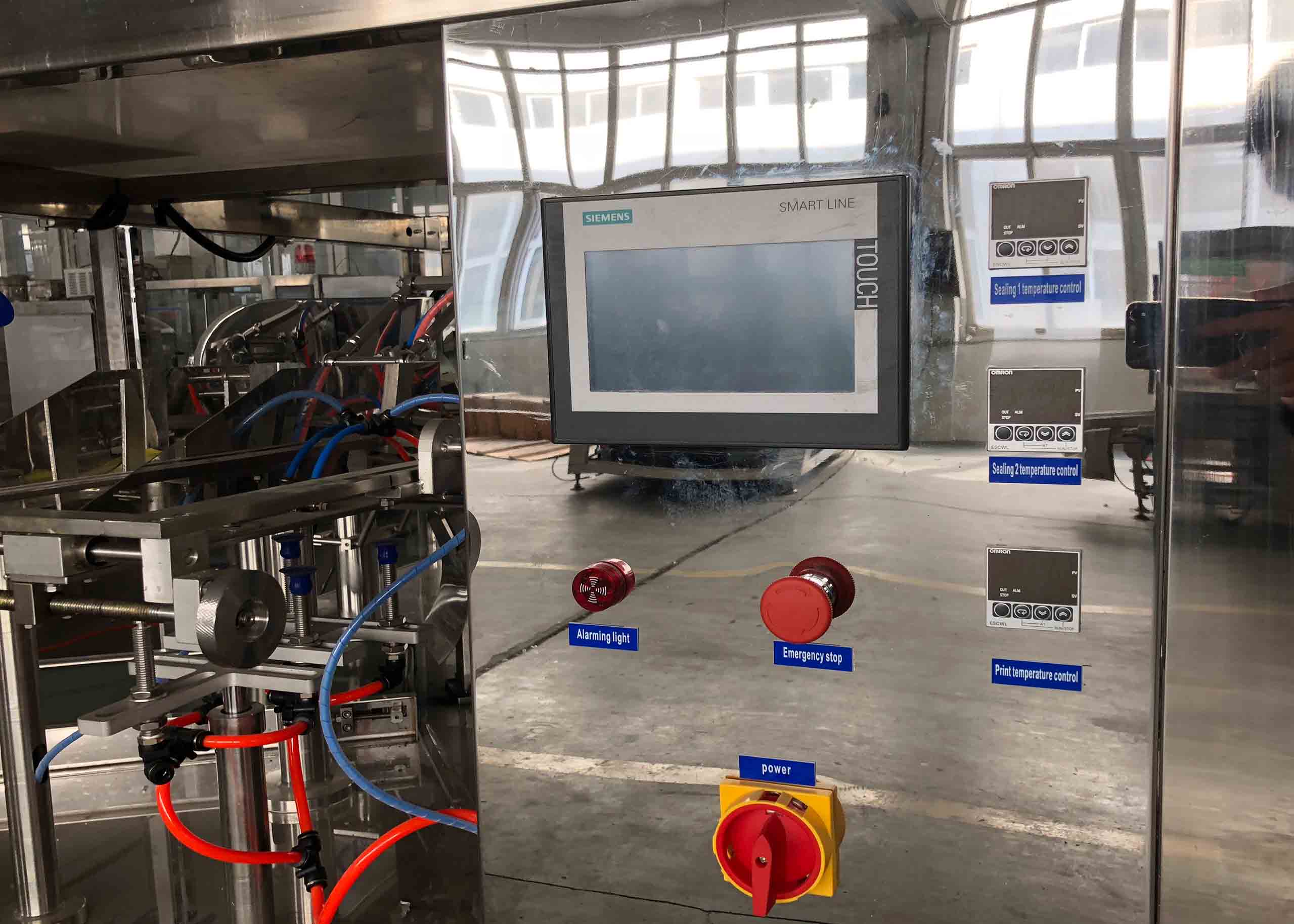

Operation interface Touch screen(double language:Chinese and English)
Bag materials Heat sealable film as PA/PE,PET/PE,AL film etc.

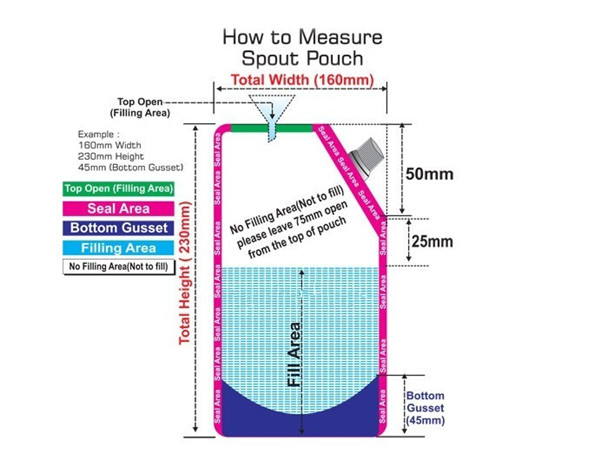

Bag size W:70~200mm L:100~300mm (date coding requires≥140mm length)
Filling range 5~1500g
Packing speed 20~45bags/min (depended on the product and filling weight)
Package accuracy Error≤±1%
Weight 1000kg
Dimension 1675*1535*1480(L,W,H)
Total power 2.3kw
Driving power source 380V Three-phase Five-line 50HZ
Control power source DC24V
Compress air requirement ≥0.45m³/min (compress air is provided by user)

Bag types

Standup bag, portable bag, Zipper bag, 4-side sealing bag, 3

side sealing bag, paper bag, M type bag etc, and all kinds of compound bags.

Automatic Doypack Packaging Machine With Liquid Filling Machine For honey oil ketchup paste sauce juice laundry liquid

Automatic Doypack Packaging Machine With Liquid Filling Machine For honey oil ketchup paste sauce juice laundry liquid
