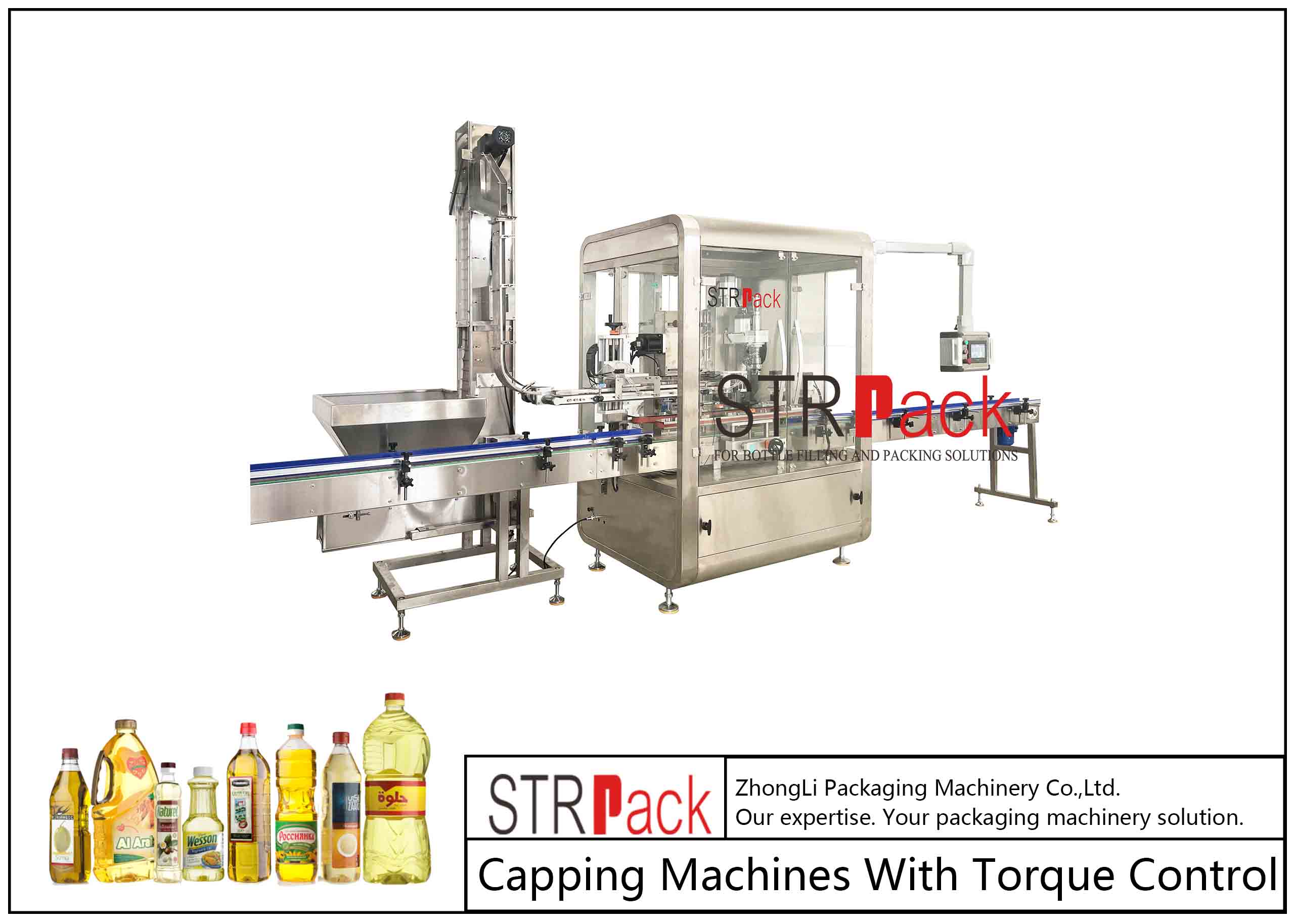

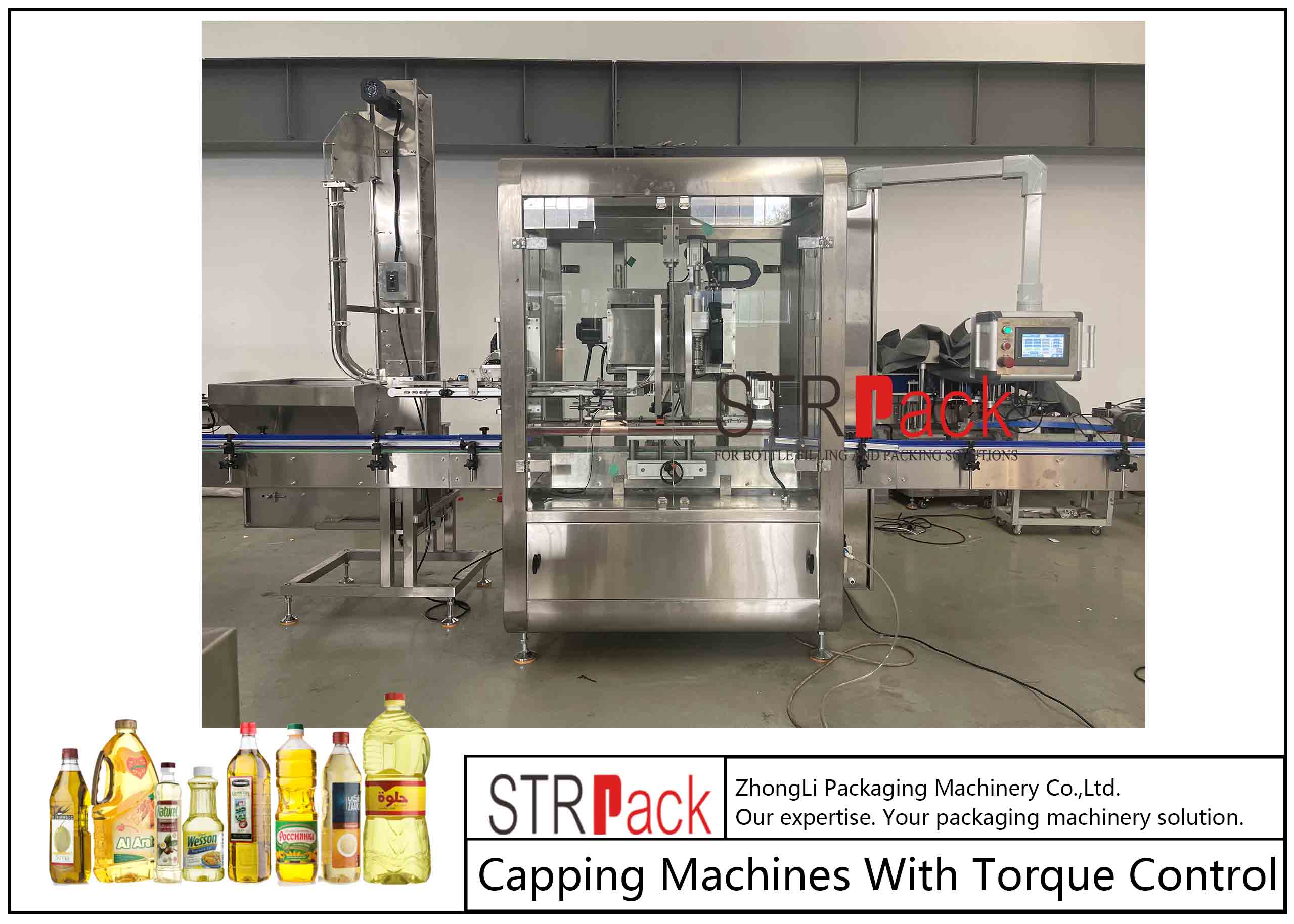

Capping Machines With Torque Control
Our capping machines can be used for threaded, press-on or crimped caps and feature precision torque control
Offers automatic bottle capping machines to fit your production needs and our bottle cap machines use cutting-edge technology to reach faster speeds and greater precision. From production lines with large containers and enclosures to high-speed applications that require automatic capping with torque monitoring, we have machines to fit your needs. From inline threaded caps to crimp on or press on caps, our capping machines can consistently apply and torque closures onto containers with accurate and repeatable application.
Main Featrue

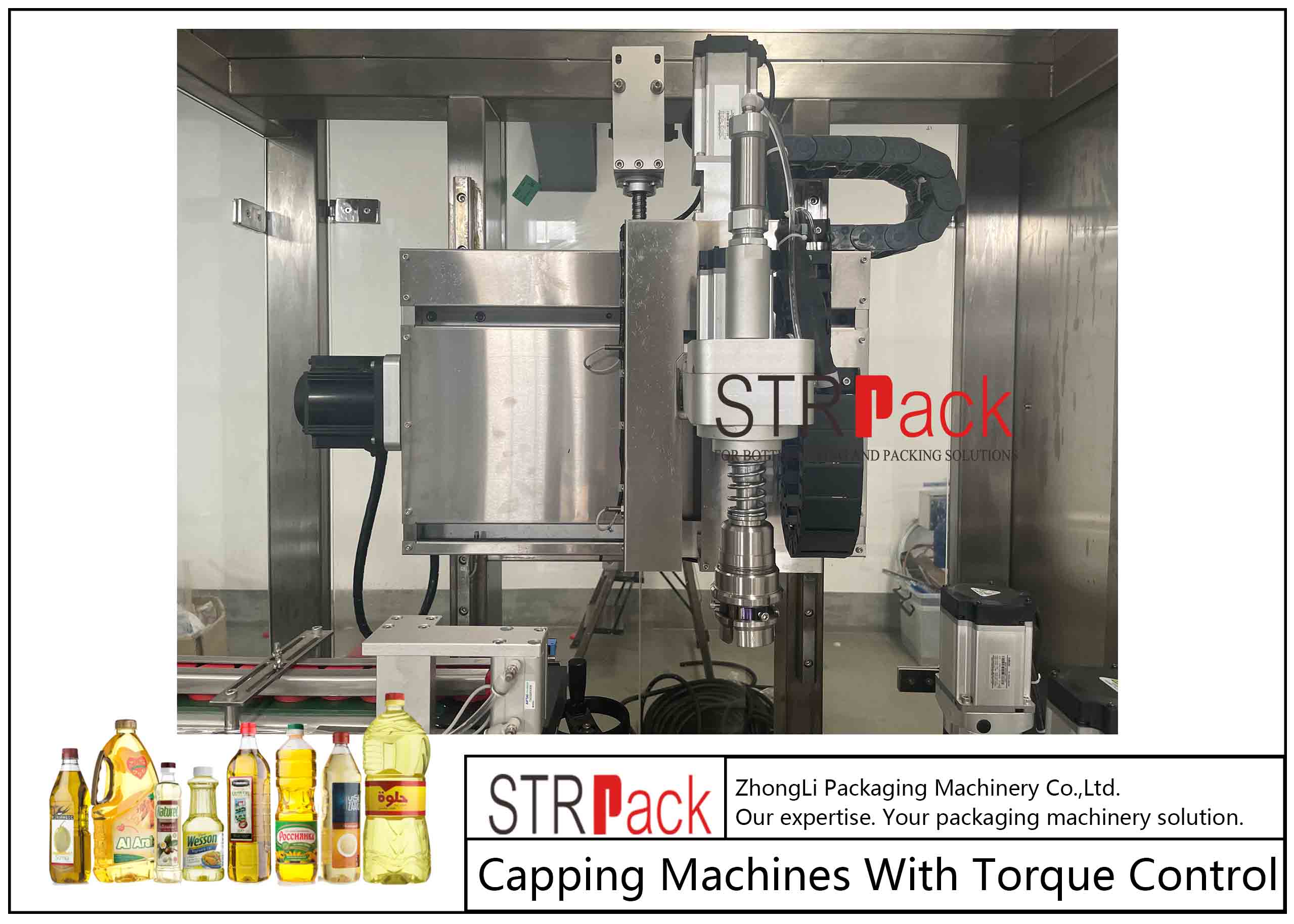

1. The servo system + torque module controls the capping head, and the cap tightness is freely set.
2. The whole machine is made of 304 stainless steel material without any dead corner.
3. The cap feeding system is adapt Cap elevator which can storage around 500caps at a time.
4. For different size of bottle and cap, only need adjust no need change parts excluding the capping head.
5. No Liquid Shakes Out---Bottles no need to stop for capping
6. Wide Application--- fast switching for various caps
7. High success rate cap loading---pick & place capping
Parameter
| Model | SX-50A |
| Speed | 0-80pcs/Min |
| Cap Type | Screw cap |
| Bottle Diameter | 30-160mm |
| Bottle Height | 50-280mm |
| Cap Diameter | 18-80mm |
| Power | 3.5KW |
| Air Pressure | 0.6-0.8Mpa |
| Voltage | 220V/380V, 50Hz/60Hz |
FAQ
1---If have stock machine?
For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
2---How long time to make?
For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
3---Ship from which port?
If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.
4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.
-If can visit factory to check machines firstly, then place order?
Sure! Welcome to visit us !
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
About Us
-- Focusing on Development, Packaging Industry Leader
-- Keeping on Recruiting Talents and Innovation
-- Advanced equipment, Guaranteed quality
For quick response please contact us by cellphone/WhatsApp:008617317720909
